Seagate Rosewood Head Connector Codes

by Aug 31, 2022

Seagate Rosewood Head Connector Code x 300When data recovery professionals are selecting a matching Seagate drive for parts, it’s important for them to get a good match so the heads can read and write to the drive. In a previous post, I listed some common rules for identifying a Seagate donor drive. This post is specific to the Seagate Rosewood family of drives (A5, AE, AF, 8C). The Rosewood family consists of 500GB, 1TB, 1.5TB, and 2TB mobile drives in the 2.5″ form factor. The following information may not necessarily help when choosing a donor drive, but it is interesting to see manufacturing codes over a period of time.

The following list only includes drives that have been in our possession. The data is not from any other sources. We do not accept submissions for addition to our list. We still have boxes of these drives we intend to add to the list over time.

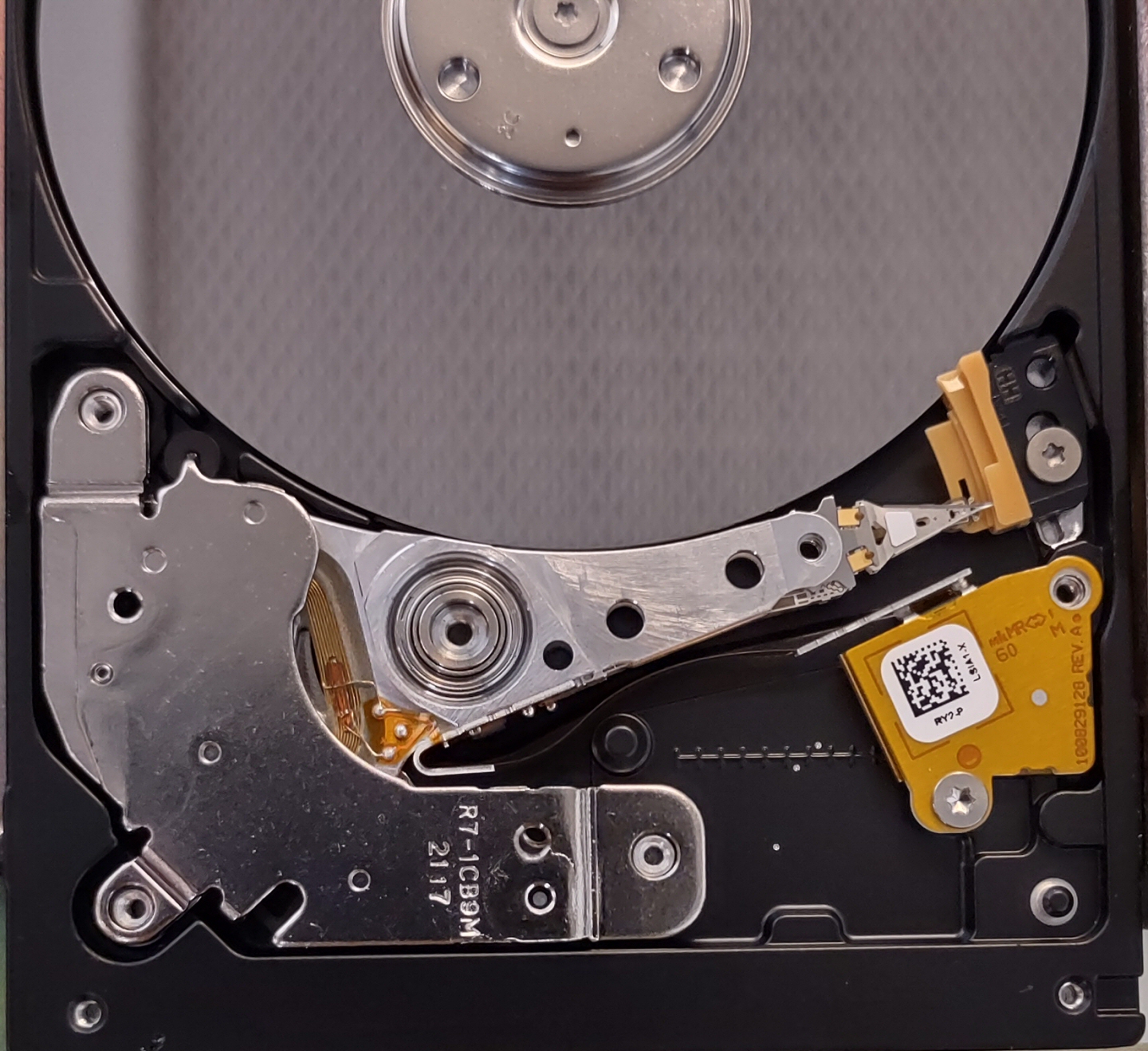

This Rosewood internal head markings list includes the Seagate model number, part number, first 3 characters of the serial number,  firmware revision, date of manufacture, and the internal code stamped on the head connector plate. We have recently started adding the site code and PCB number too.

500GB —

ST500LM030 | 1RK172-030 | ZDE | SDM2 | 07 JAN 2018 | RZ2-B / AG-2

ST500LM030 | 2E717D-500 | ZDE | SDM1 | 31 JUL 2018 | RZ2-B / AG-K

ST500LM034 | 2GH17A-171 | WGS | LXM3 | 11 JAN 2019 | RY2-T / TIAB-R

1TB —

ST1000LM035 | 1RK172-566 | W93 | SBM3 | 05 FEB 2016 | RY2-T / AGB1-D

ST1000LM035 | 1RK172-566 | W93 | SBM3 | 13 APR 2016 | RY2-T / AGB1-D

ST1000LM035 | 1RK172-568 | W93 | SBM3 | 08 MAY 2016 | RY2-T / AGB1-D | WU | 100781943

ST1000LM035 | 1RK172-566 | W93 | SBM3 | 19 JUN 2016 | RY2-P / LSIB1-G

ST1000LM035 | 1RK172-568 | WCB | SBM3 | 27 JUN 2016 | RY2-P / LSIB1-C | WU | 100781943

ST1000LM035 | 1RK172-568 | W93 | SBM3 | 29 JUN 2016 | RY2-T / AGB1-B

ST1000LM035 | 1RK172-568 | WDE | SBM3 | 20 AUG 2016 | RY2-T / AGB1-B

ST1000LM035 | 1RK172-568 | WES | SBM3 | 31 OCT 2016 | RY2-T / TIAB-D

ST1000LM035 | 1RK172-568 | WDE | SBM3 | 23 NOV 2016 | RY2-T / AGB1-D

ST1000LM035 | 1RK172-568 | WC0 | SBM3 | 24 NOV 2016 | RX4-P / LSIB1-P (3-head missing 0)

ST1000LM035 | 1RK172-285 | WES | SDM1 | 08 DEC 2016 | RY2-P / LSIB1-G | WU | 100781943

ST1000LM035 | 1RK172-568 | WBZ | SBM3 | 10 DEC 2016 | RX4-P / LSIB1-P (3-head missing 3)

ST1000LM035 | 1RK172-285 | WDE | SDM1 | 15 DEC 2016 | RY2-P / LSIB1-V

ST1000LM035 | 1RK172-285 | WDE | SDM1 | 15 DEC 2016 | RY2-T / TIAB-B | WU | 100799274

ST1000LM035 | 1RK172-285 | WES | SDM1 | 19 DEC 2016 | RY2-T / AGB1-D

ST1000LM035 | 1RK172-285 | WDE | SDM1 | 21 DEC 2016 | RY2-T / AGB1-D

ST1000LM035 | 1RK172-020 | WDE | RSM4 | 24 DEC 2016 | RY2-P / LSIB1-V

ST1000LM035 | 1RK172-020 | WDE | RSM4 | 08 FEB 2017 | RY2-P / LSIB1-V

ST1000LM035 | 1RK172-568 | WDE | SBM3 | 20 MAR 2017 | RY2-T / TIAB-B

ST1000LM035 | 1RK172-071 | WDE | LVM2 | 21 MAR 2017 | RY2-T / AGB1-B

ST1000LM035 | 1RK172-568 | WDE | SBM3 | 08 APR 2017 | RY2-P / TIAB-V

ST1000LM035 | 1RK172-036 | WDE | SDM2 | 12 APR 2017 | RY2-T / TIAB-B

ST1000LM035 | 1RK172-189 | WDE | ACM1 | 11 APR 2017 | RY2-T / LSIB1-W

ST1000LX015 | 1U7172-500 | WDE | SDM1 | 21 May 2017 | RY2-P / TIAB-W

ST1000LM035 | 1RK172-568 | ZDE | SBM3 | 31 May 2017 | RZ2-B / AG-D

ST1000LM035 | 1RK172-189 | WDE | ACM2 | 03 AUG 2017 | RY2-P / TIAB-W

ST1000LM035 | 1RK172-021 | ZDE | RSM7 | 06 AUG 2017 | RY2-C / TIAB-S

ST1000LM035 | 1RK172-568 | WC0 | SBM3 | 13 AUG 2017 | RX4-P / LSIB1-V (3-head)

ST1000LM035 | 1RK172-036 | WDE | SDM2 | 14 AUG 2017 | RY2-P / LSIB1-W

ST1000LM035 | 1RK172-568 | WDE | SBM3 | 16 AUG 2017 | RY2-P / TIAB-V

ST1000LM035 | 1RK172-285 | WDE | SDM1 | 28 AUG 2017 | RY2-P / LSIB1-V

ST1000LM035 | 1RK172-021 | WDE | RSM7 | 02 SEP 2017 | RY2-T / AGB1-B

ST1000LM035 | 1RK172-189 | ZDE | ACM1 | 02 SEP 2017 | RZ2-B / AG2

ST1000LM035 | 1RK172-568 | ZDE | SBM3 | 30 SEP 2017 | RY2-C / LSIB1-S

ST1000LM035 | 1RK172-021 | WDE | RSM7 | 17 NOV 2017 | RY2-T / TIAB-B

ST1000LM035 | 1RK172-568 | WDE | SBM3 | 29 NOV 2017 | RY2-T / AGB1-B

ST1000LM035 | 1RK172-568 | WDE | SBM3 | 07 DEC 2017 | RY2-T / TIAB-B

ST1000LM035 | 1RK172-286 | WDE | SDM2 | 18 DEC 2017 | RY2-P / LSIB1-W

ST1000LM035 | 1RK172-036 | WDE | SDM2 | 07 JAN 2018 | RY2-T / TIAB-D

ST1000LM035 | 1RK172-021 | WDE | RSM7 | 09 JAN 2018 | RY2-P / LSIB1-W

ST1000LM035 | 1RK172-071 | WDE | LCM2 | 18 JAN 2018 | RY2-P / LSIB1-W

ST1000LM035 | 1RK172-568 | ZDE | SBM3 | 26 JAN 2018 | RZ2-B / AG-K

ST1000LM035 | 1RK172-568 | ZF5 | SDM2 | 12 FEB 2018 | R04-B / TI-D (3-head missing 3)

ST1000LM035 | 1RK172-036 | WL1 | SDM2 | 25 FEB 2018 | RY2-T / AGB1-B

ST1000LM035 | 1RK172-036 | WL1 | SDM2 | 11 APR 2018 | RY2-T / AGB1-R | 100809471

ST1000LM035 | 1RK172-021 | WL1 | RSM7 | 20 APR 2018 | RY2-T / TIAB-R

ST1000LM035 | 1RK172-071 | WL1 | LCM2 | 19 MAY 2018 | RY2-T / AGB1-D

ST1000LM035 | 1RK172-036 | ZDE | SDM2 | 30 MAY 2018 | RZ2-B / AG-2

ST1000LM035 | 1RK172-021 | WL1 | RSM7 | 01 AUG 2018 | RY2-T / AGB1-R

ST1000LM035 | 1RK172-021 | ZDE | RSM7 | 02 AUG 2018 | RZ2-B / AG-K

ST1000LM035 | 1RK172-036 | WL1 | SDM3 | 24 AUG 2018 | RY2-T / AGB1-R

ST1000LM035 | 1RK172-036 | ZDE | SDM3 | 21 NOV 2018 | RY2-C / LSIB1-N

ST1000LM038 | 1RD172-500 | ZDE | SDM1 | 20 JAN 2019 | RZ2-B / AG-2

ST1000LM048 | 2E7172-500 | ZDE | SDM1 | 02 FEB 2019 | RZ2-B / TI-2

ST1000LM035 | 1RK172-570 | ZDE | EB01 | 22 JUL 2019 | RY2-C / LSIB1-N | TK | 100835923

ST1000LM035 | 1RK172-073 | WKP | LFM1 | 12 AUG 2019 | RY2-T / AGA1-R | WU | 100835923

ST1000LM035 | 1RK172-541 | WKP | 0001 | 19 OCT 2019 | RY2-T / AGA1-Z

ST1000LM035 | 1RK172-570 | ZDE | EB01 | 08 NOV 2020 | RZ2-B / AG-K

ST1000LM048 | 2E7172-501 | ZDE | 0001 | 02 FEB 2021 | RY2-P / LSIA1-X | TK | 100835923

ST1000LM048 | 2E7172-501 | ZDE | 0001 | 03 FEB 2021 | RY2-P / LSIA1-X

2TB —

ST2000LM007 | 1R8174-566 | WCC | SBK2 | 06 MAR 2016 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-567 | WCC | SBK2 | 13 JUL 2016 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | WCC | SBK2 | 31 JUL 2016 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | WCC | SBK2 | 11 AUG 2016 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 22 AUG 2016 | RX4-P / LSIB1-W

ST2000LM007 | 1R8174-568 | WCC | SBK2 | 22 AUG 2016 | RX4-P / TIAB-G | WU |

ST2000LM007 | 1R8174-500 | WCC | SBK2 | 16 SEP 2016 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-500 | WCC | SDM1 | 19 SEP 2016 | RX4-T / AGB1-D | WU | 100781943

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 25 OCT 2016 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 30 NOV 2016 | RX4-T / AGB1-D

ST2000LM007 | 1R8172-285 | WES | SDM1 | 08 DEC 2016 | RY2-P / LSIB1-G | WU

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 23 DEC 2016 | RX4-P / LSIB1-V | WU

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 04 JAN 2017 | RX4-P / LSIB1-V

ST2000LM007 | 1R8174-030 | WDZ | SDM1 | 13 JAN 2017 | RX4-T / TIAB-D

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 30 JAN 2017 | RX4-T / TIAB-D

ST2000LM007 | 1RG174-568 | WDZ | SBK2 | 18 MAR 2017 | RX4-T / AGB1-D | WU | 100809471

ST2000LX001 | 1RG174-500 | WDZ | SDM1 | 21 MAR 2017 | RX4-P / TIAB-V

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 28 APR 2017 | RX4-T / AGB1-D | WU | 100809471

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 08 MAY 2017 | RX4-P / LSIB1-V

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 27 JUN 2017 | RX4-T / TIAB-D

ST2000LM007 | 1RG174-030 | WDZ | SDM2 | 06 JUL 2017 | RX4-T / AGB1-D | WU | 100809471

ST2000LM007 | 1R8174-030 | WDZ | SDM2 | 12 JUL 2017 | RX4-P / LSIB1-V | WU

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 19 AUG 2017 | R04-B / AG-D | TK | 100809471

ST2000LM007 | 1R8174-030 | WDZ | SDM2 | 09 SEP 2017 | RX4-T / TIAB-D

ST2000LM007 | 1R8174-021 | WDZ | RDM4 | 27 SEP 2017 | RX4-T / AGB1-D | WU | 100809471

ST2000LM007 | 1R8174-030 | WDZ | SDM2 | 13 OCT 2017 | RX4-P / LSIB1-V | WU | 100809471

ST2000LM007 | 1R8174-021 | WDZ | RDM4 | 19 OCT 2017 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 31 OCT 2017 | R04-B / AG-D

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 01 NOV 2017 | R04-B / AG-D

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 11 NOV 2017 | RX4-P / TIAB-V

ST2000LM007 | 1R8174-021 | ZDZ | RDM4 | 12 DEC 2017 | RX4-C / TIAB-S

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 13 JAN 2018 | R04-B / TI-D

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 19 JAN 2018 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 25 FEB 2018 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 04 APR 2018 | RX4-C / TIAB-S

ST2000LM007 | 1R8174-030 | WDZ | SDM2 | 12 APR 2018 | RX4-T / AGB1-D

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 18 APR 2018 | R04-B / AG-D

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 21 APR 2018 | RX4-P / TIAB-V

ST2000LM007 | 1R8174-561 | WDZ | SBC3 | 15 MAY 2018 | RX4-T / AGB1-D | WU | 100809471

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 15 MAY 2018 | R04-B / AG-D

ST2000LM007 | 1R8174-021 | ZDZ | RDM4 | 11 JUN 2018 | RX4-C / LSIB1-S

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 26 JUL 2018 | RX4-P / LSIB1-V

ST2000LM007 | 1R8174-568 | WDZ | SBK2 | 31 JUL 2018 | RX4-T / AGB1-D | WU | 100809471

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 7 AUG 2018 | RX4-P / LSIB1-V | TK | 100809471

ST2000LM007 | 1R8174-070 | WDZ | LDM2 | 05 OCT 2018 | RX4-T / AGB1-D | WU

ST2000LM007 | 1RG174-500 | ZDZ | SDM1 | 20 OCT 2018 | R04-B / AG-2

ST2000LM007 | 1R8174-030 | WDZ | SDM2 | 24 OCT 2018 | RX4-T / AGB1-H

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 09 NOV 2018 | RX4-T / AGB1-D | TK | 100809471

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 14 DEC 2018 | RX4-C / LSIB1-N | TK | 100835923

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 08 MAR 2018 | RX4-C / LSIB1-N | TK | 100835923

ST2000LM007 | 1RG174-570 | ZDZ | EB01 | 10 MAR 2019 | R04-B / AG-2

ST2000LM010 | 1RA174-500 | ZDZ | SDM1 | 26 APR 2019 | R04-B / AG-2

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 29 APR 2019 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 11 MAY 2019 | RX4-C / LSIB1-N | TK | 100835923

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 15 MAY 2019 | RX4-C / LSIB1-N

ST2000LM007 | 1RG174-120 | ZDZ | SS22 | 13 JUN 2019 | R04-B / AG-2

ST2000LM010 | 1RA174-500 | ZDZ | SDM1 | 09 SEP 2019 | R04-B / AG-2

ST2000LM007 | 1R8174-570 | WDZ | EB01 | 08 NOV 2019 | RX4-P / LSIB1-X

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 27 NOV 2019 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 05 DEC 2019 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 24 DEC 2019 | R04-B / AG-2

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 27 DEC 2019 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 01 FEB 2020 | R04-B / AG-2

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 03 FEB 2020 | RX4-C / LSIB1-N

ST2000LM015 | 2E8174-501 | WDZ | 0001 | 03 FEB 2020 | RX4-T / AGB1-2

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 08 MAR 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 14 APR 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 24 APR 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 27 APR 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 10 MAY 2020 | RX4-T / AGB1-2

ST2000LM010 | 1RA174-500 | ZDZ | SDM1 | 11 JUN 2020 | R04-B / AG-2

ST2000LM007 | 1R8174-570 | ZDZ | SPS6 | 16 JUN 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 24 JUL 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-576 | ZDZ | SPS6 | 12 AUG 2020 | R04-B / AG-2

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 11 AUG 2020 | RX4-C / LS1B1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 17 AUG 2020 | RX4-C / LS1B1-N

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 20 OCT 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-568 | ZDZ | SBK2 | 21 OCT 2020 | R04-B / AG-2

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 06 DEC 2020 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | SPS6 | 07 JAN 2021 | R04-B / AG-K

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 04 FEB 2021 | RX4-C / LS1B1-N

ST2000LM007 | 1R8174-576 | ZDZ | SPS6 | 15 FEB 2021 | R04-B / AG-K

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 01 MAR 2021 | R04-B / AG-2

ST2000LM007 | 1R8174-576 | ZDZ | SPS6 | 22 MAR 2021 | R04-B / AG-K

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 22 APR 2021 | R04-B / AG-K

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 08 JAN 2021 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 01 MAR 2021 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-073 | WDZ | LGM4 | 01 APR 2021 | RX4-P / LSIA1-X

ST2000LM007 | 1R8174-073 | WDZ | LGM4 | 02 APR 2021 | RX4-P / LSIA1-X

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 12 APR 2021 | R04-B / AG-K

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 02 JUN 2021 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 13 JUL 2021 | R04-B / AG-Z

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 18 JUL 2021 | R04-B / AG-K

ST2000LM007 | 1R8174-570 | ZDZ | SPS6 | 09 NOV 2021 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | SPS6 | 06 DEC 2021 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 06 DEC 2021 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 25 DEC 2021 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 05 MAR 2022 | RX4-C / LSIB1-N | TK | 100835923

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 08 MAR 2022 | RX4-C / LSIB1-N

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 15 APR 2022 | R04-B / AG-2 | TK | 100835923

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 07 NOV 2022 | R04-B / AG-2 | TK | 100835923

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 18 FEB 2023 | R04-B / AG-2 | TK | 100835923

ST2000LM007 | 1R8174-570 | ZDZ | EB01 | 23 FEB 2023 | RX4-C / LSIB1-N

If you are a hard drive data recovery pro you might find our Seagate Rosewood Read Channel Short Points article helpful.
